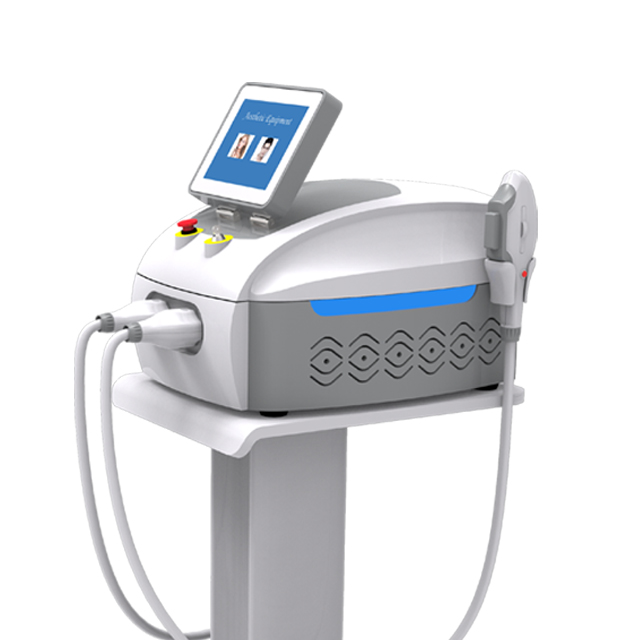

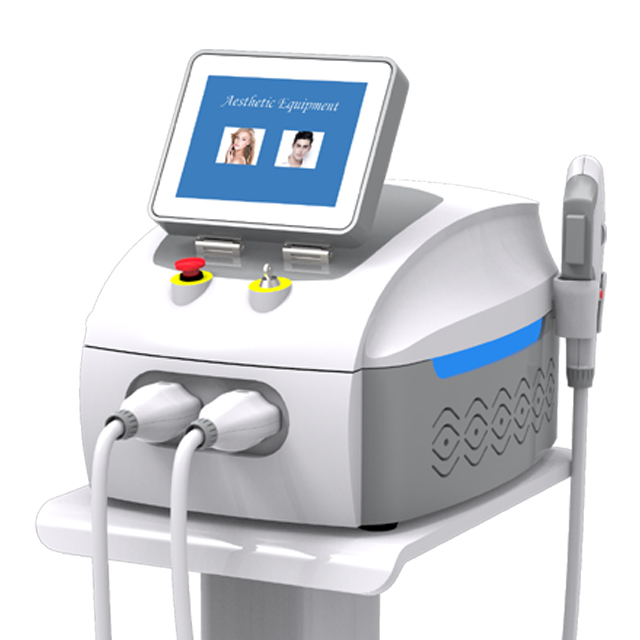

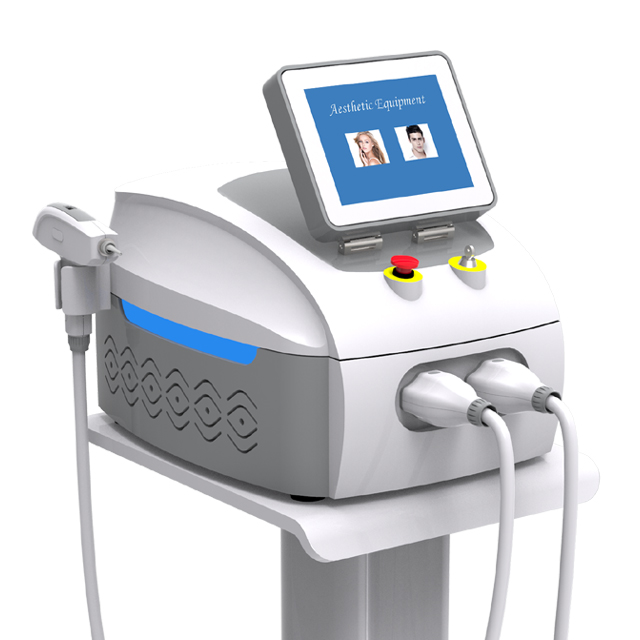

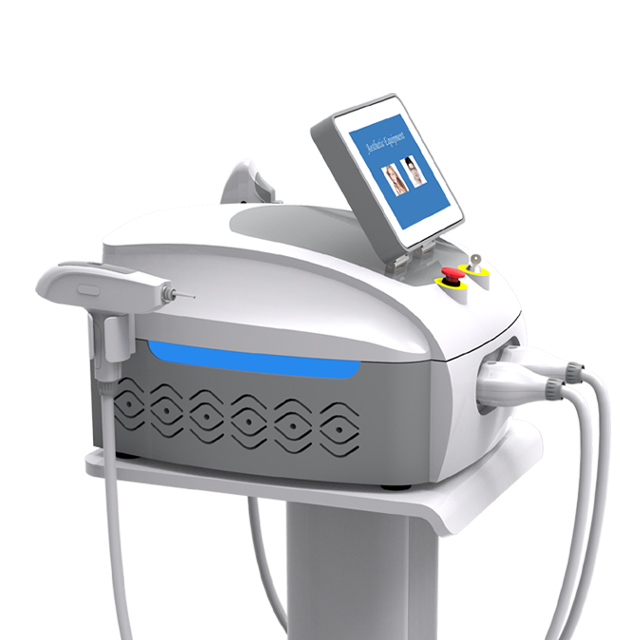

As we all know, Brolaser supplies vertical 4 in 1 machine. Many clients asks about a tabletop one too as they need a machine covering not large room and costing less shipping cost.
This machine is the right one.
The technical principle and functions are all the same as those of the vertical one. Therefore, the introduction for this machine will be more simple here.

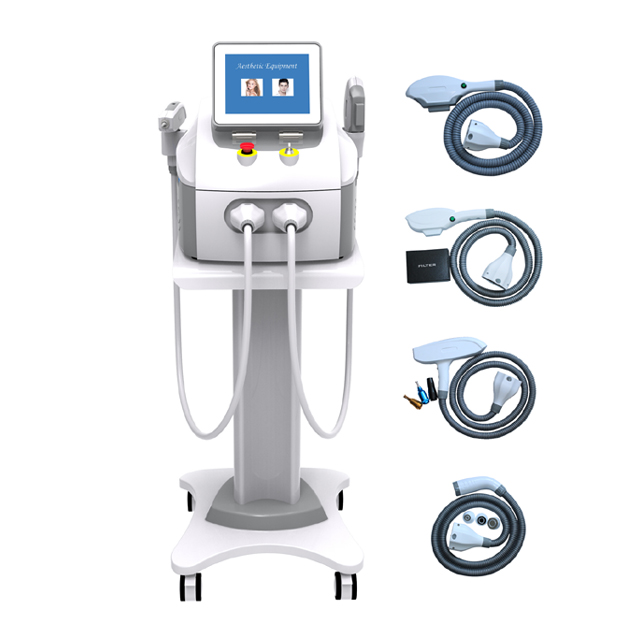

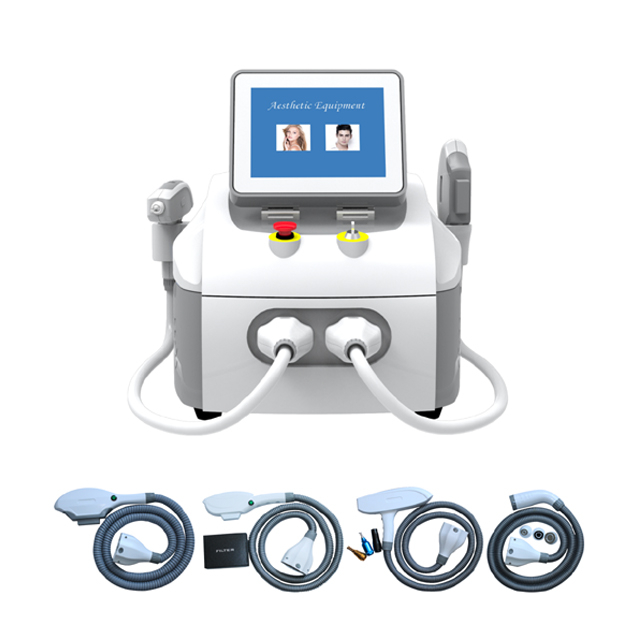

Same as the vertical one, this tabletop machine comes with 4 handpieces too as below:
SHR handpiece for fast hair removal
E-light for stamp hair removal and skin rejuvenation
YAG laser for tattoo removal and carbon facial peeling
RF for skin tightening

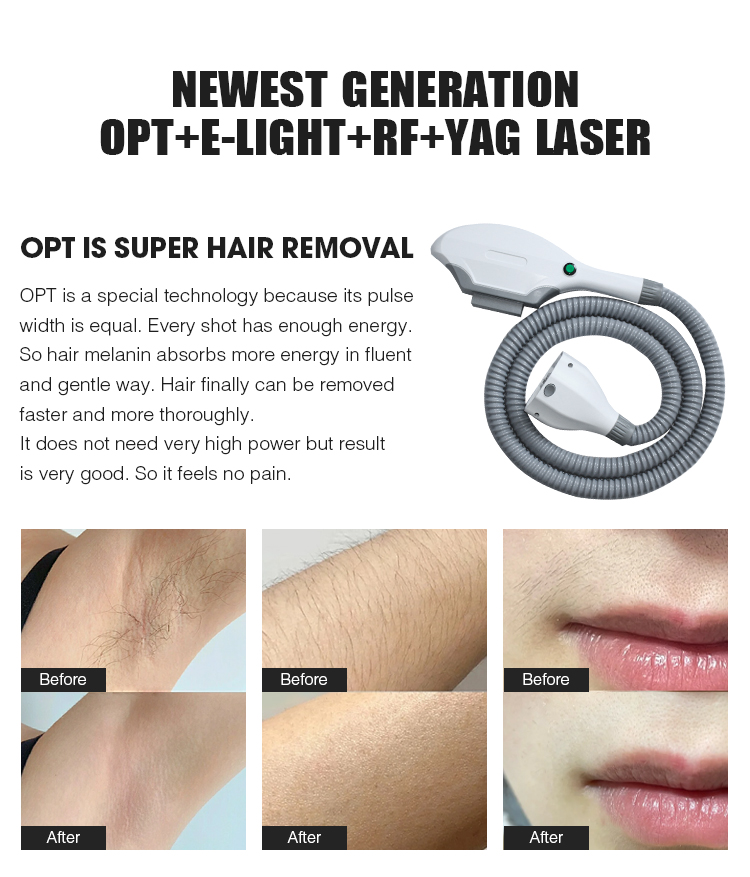

Technical Principle

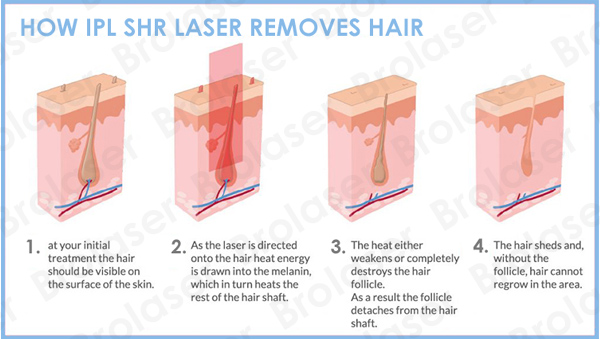

Compared with the IPL mode of triggering once and firing once, SHR shots faster. The operator just needs to trigger and hold the trigger and it will just keep firing. The speed of the firing can be adjusted. For example, you can set it to fire 3 times per second, or 5 times, or even 10 times per second.
Thanks to the above features, you can slide the handle of SHR back and forth on the skin, so the treatment speed is very fast. It can greatly save treatment time.
Its pulse width is equal pulse width, which means that each light stays on the skin for the same time, so its energy output is very stable, and the effect will naturally be very good.
Besides, SHR treatment is painfree and it is suitable for all skin tones.

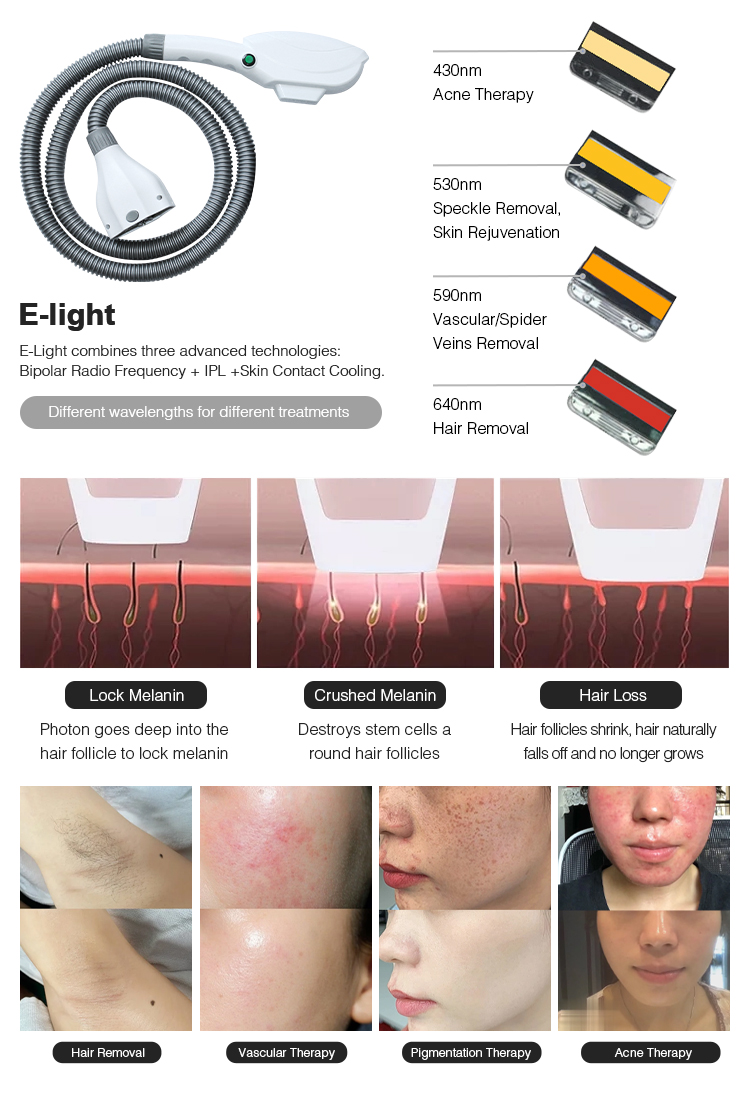

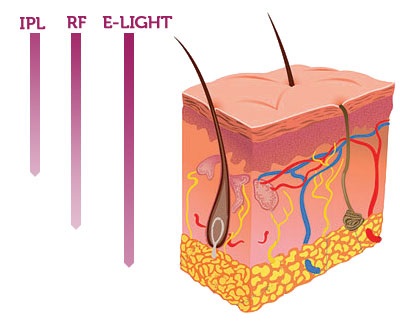

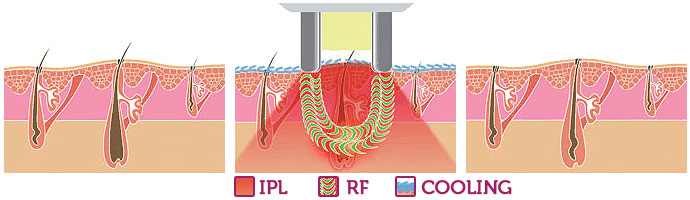

2) E-light = IPL + RF
In the beginning, people use IPL only. And they use RF for skin tightening.
As we know, RF's penetration force is much stronger than IPL.And RF heats skin tissues from inside of skin and can reach deeper under skin. RF and IPL work at the same time together onto the same treatment area, IPL energy can be absorbed more fully and can reach deeper under skin. In this way, it can produce better treatments results.
What's more, a cooling system makes the treatment more pleasant. The portion of the applicator which is in contact with the skin cools its outermost layers, soothing it and reducing the sensation of heat.

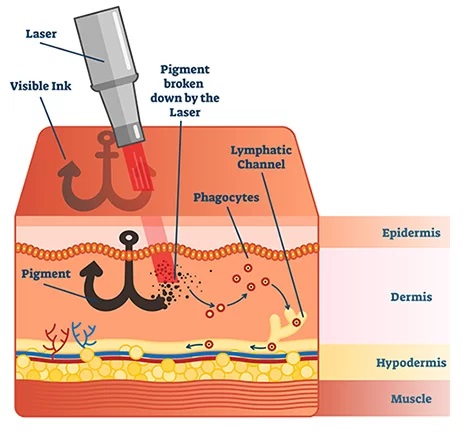

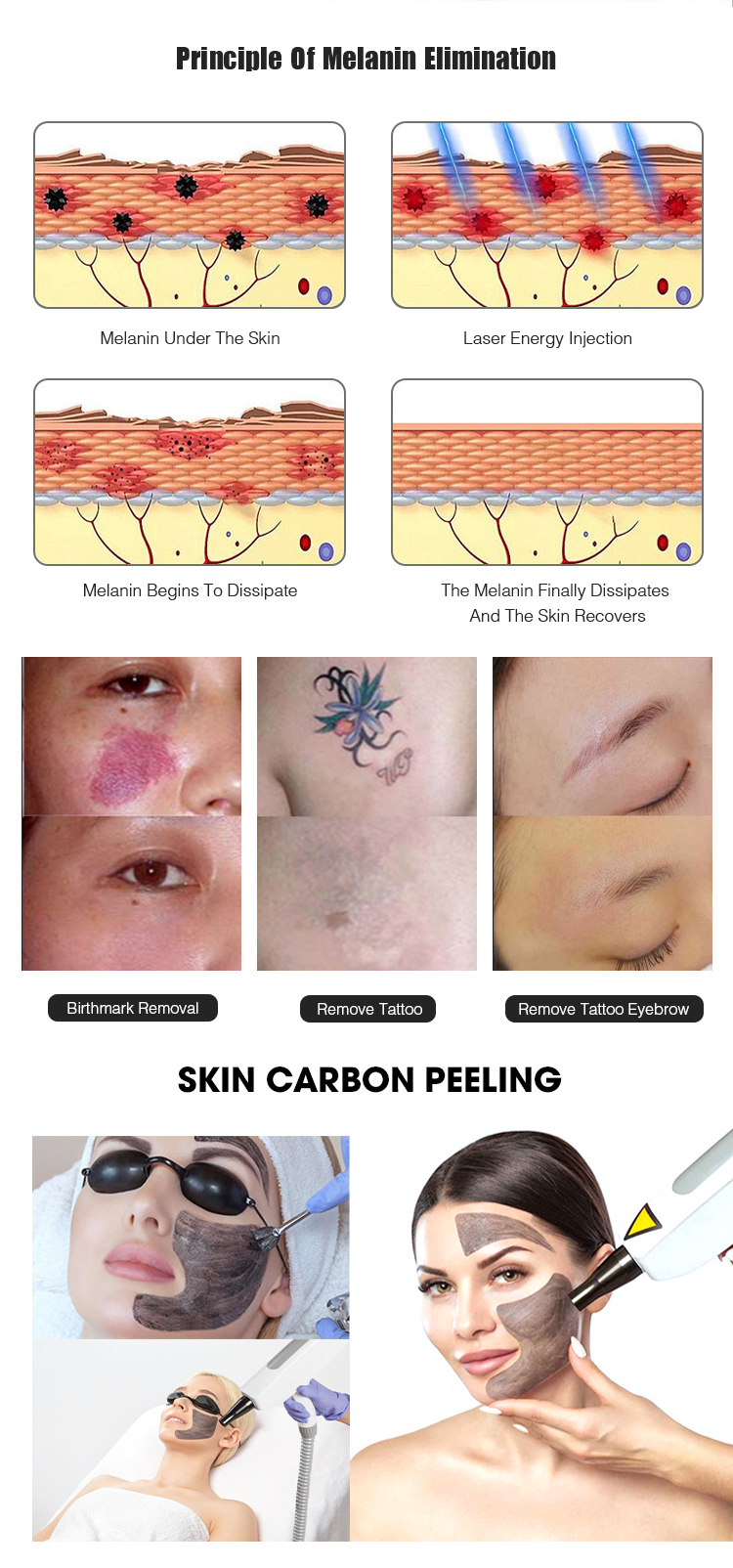

3) ND YAG Laser Tattoo Removal & Carbon Peeling
The Q Switched Nd YAG laser shots a specific wavelength very quickly at very high energy levels. Each of these pulses (pulse duration or pulse width) work on tattoo in a very short time (within nanoseconds). The narrower pulse duration, the stronger explore force and the less pain caused. The laser is selectively absorbed by the tattoo pigment, breaking it down into fragments small enough that the body can recognize these particles as foreign matter.
Over the next few days, some of the particles (in the surface stratum corneum) are excreted from the body, and the rest (in deeper tissues) are absorbed and will be discharged from the body through the lymphatic system.
As the specific wavelength is absorbed only by the pigment particles only, there is no lasting damage to the skin and normal tissue.
On this laser system, there are six separate treatment units: Eyebrow, Tattoo , Nevus, Birthmark, Nevus of Ota Removal and Carbon Facial, and each of units can save settings, which is very professional and practical.
Some clients used Brolaser's YAG laser to treat feet fungus too and got brilliant results.

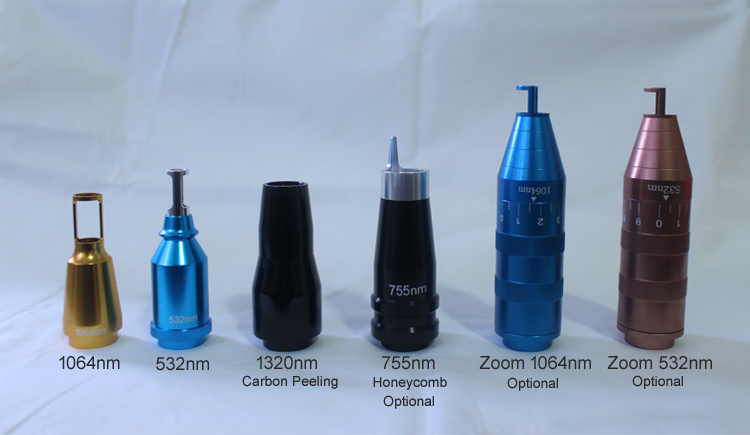

Laser Treatment Tips:
① Zoom lens: Adjustable 1064nm and 532nm for big area tattoo removal (Need additional purchase)；
② 1064nm and 532nm tips for normal and small area treatment；
③ 1320nm for carbon peeling treatment.
1064nm wavelength: remove eyebrow tattoo, failed eye line tattoo, tattoo, pigmentation and age spot, nevus
532nm wavelength: remove freckles, eyebrow tattoo, failed eye line tattoo, tattoo , lips line, pigment, red, brown and pink and etc. light color. pigment removal.
1320nm Professional for carbon peeling and face deep cleaning, blackhead removal, skin tightening, skin rejuvenation.

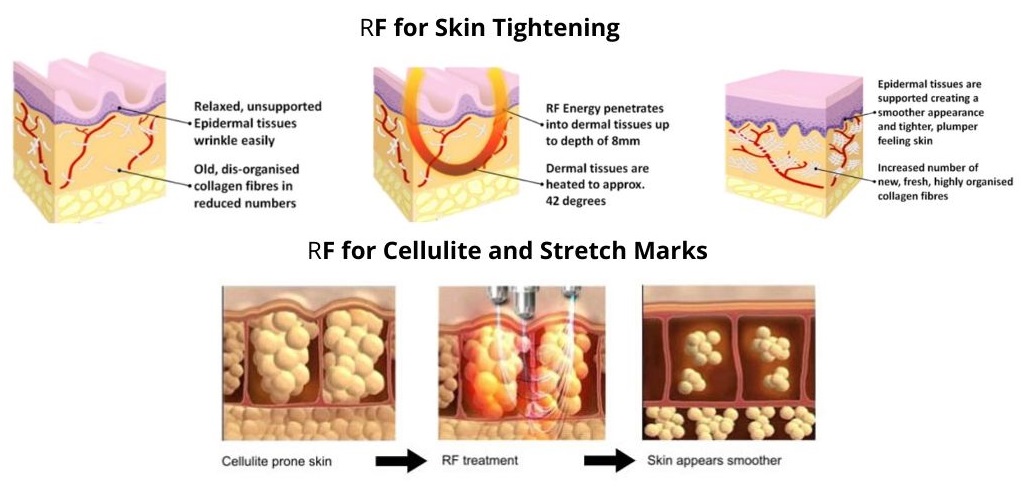

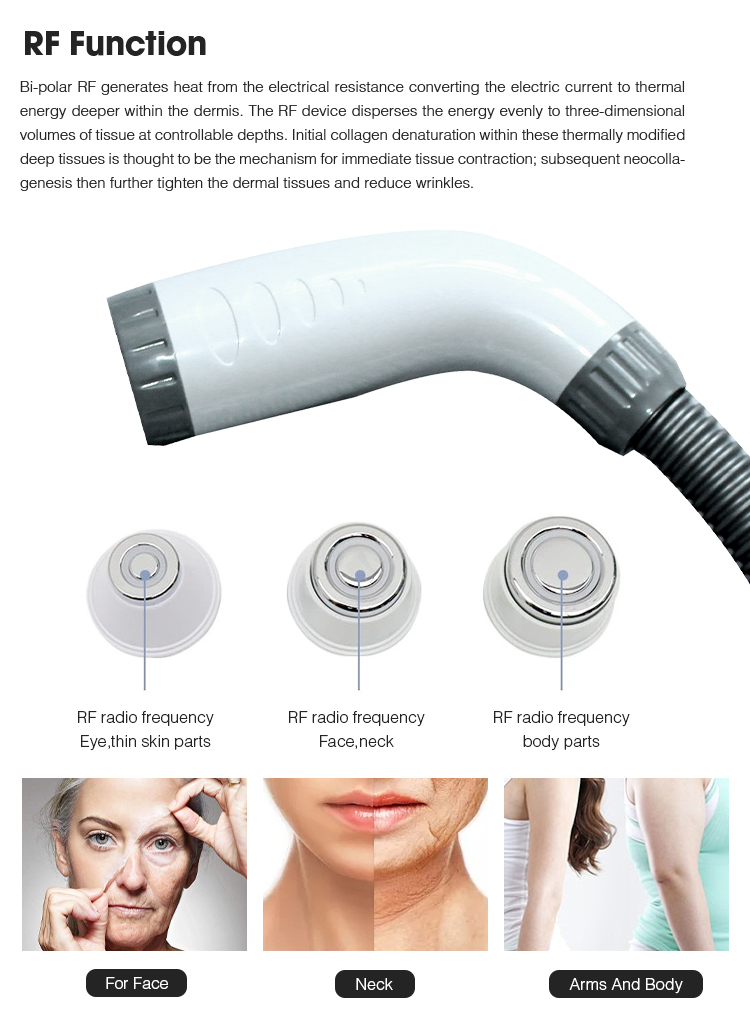

4) RF Skin Tightening
RF (Radiofrequency) stimulates skins natural production of collagen and elastin. During a skin tightening treatment, radiofrequency waves pass through the skin from one pole to the other. When the skin resists these waves, it stimulates the regeneration of collagen and the repair of elastic fibers.
People who don't want the extra expense, pain or recovery time of cosmetic surgeries may choose radio frequency skin tightening. The procedure:
Improves skin tone, texture and firmness.
Minimizes the appearance of sun damage.
Provides a more youthful appearance.
Reduces the effects of aging skin like wrinkles, fine lines and saggy skin.
Specifications
Type of machine | 4 in 1: SHR, E-light, YAG, RF |
Wavelength | SHR: 640-950nm E-light: 430/530/590/640nm(standard), 480/560/690/750nm (optional) Nd:Yag: 1064nm/532nm/1320nm RF: 10M(radio frequency) |
Energy density | SHR: 1-50J/cm2 adjustable E-light: 1-50J/cm2 adjustable Nd:Yag: 1-1500mj adjustable RF: 1-20J/cm3 adjustable |
Spot size | SHR: 10x40mm or 15x50mm E-light: 10x40mm or 15x50mm Nd:Yag: 1-8mm adjustable RF: 20/28/35mm (diameter) |
Pulse duration | SHR: 1-10ms E-light: 1-30ms each pulse adjustable Nd:Yag: 3.5ns RF: 50-2500ms |
Pulse | SHR: Single E-light: Pulses YAG: Single and multiple |
SHR and YAG Shot frequency | 1-10HZ |
Display | 10.4' Movable color LCD touch screen |
Cooling system | Semiconductor+ air + water + cooling gel |
Skin Cooling | -6°C ~ 0°C |
Output power | 3500W |
Voltage | 100~240V 50/60Hz |
Multi software languages | Yes |
Product size | 59x46x36cm |
Package size | 72x59x59cm |
Net weight | 27KG |
Gross weight | 45KG |
| SHR Hair Removal | IPL Skin Rejuvenation | Laser Tattoo Removal | RF Face Lift |
 |  |  |  |
